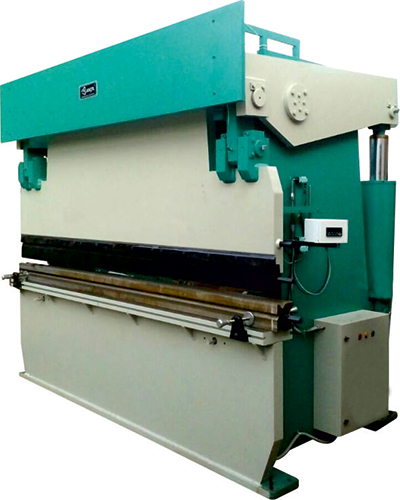

Hydraulic Press Brake

The Hydraulic Press Brake offers a perfect blend of power, precision, and flexibility for heavy-duty bending of thick metal sheets. Driven by synchronized hydraulic cylinders, this machine delivers uniform pressure across the entire bending length, ensuring superior accuracy and quality.

Hydraulic Press Brake Features:

Synchronized dual hydraulic cylinders for balanced movement
NC/CNC controllers for programmable operations (optional)
Adjustable back gauge with digital display
Safety light curtains and emergency stop for enhanced safety
High bending force with minimal noise and vibration
Torsion bar or servo-hydraulic systems depending on model
Robust welded frame to withstand heavy loads

Technical Specification:

Model no.	Tonnage	Clear Distance Between Housing MM	Bending Capacity (L x T) MS MM	Ram Stroke MM	Open Height MM	Closed Height MM	Throat MM	App. Ram Speed (MM/Sec.)			Motor H.P.
Model no.	Tonnage	Clear Distance Between Housing MM	Bending Capacity (L x T) MS MM	Ram Stroke MM	Open Height MM	Closed Height MM	Throat MM	Approach	Pressing	Return	Motor H.P.
AHP-01	40	1525	20 x 2.5	100	280	180	240	40	5	60	3
AHP-02	65	1525	2030 x4	150	360	210	300	36	5	55	5
AHP-03	80	2030	2540 x 4	150	360	210	300	36	4	55	5
AHP-04	100	2540	2540 x 5	150	360	210	300	36	6.5	55	7.5
AHP-05	100	2540	3125 x 4	150	360	210	300	36	6.5	55	7.5
AHP-06	120	2030	2540 x 6	150	360	210	300	30	4	55	10
AHP-07	125	2540	3125 x 5	150	360	210	300	30	4	55	10
AHP-08	150	2540	3125 x 6	150	360	210	300	30	4	55	10
AHP-09	160	2030	2540 x 8	150	360	210	300	30	4	55	10
AHP-10	200	2540	3125 x 8	150	360	210	300	22	5	54	15
AHP-11	200	2030	2540 x 10	200	415	215	300	22	5	54	15
AHP12	250	2540	3125 x 10	200	415	215	300	22	5	42	20
AHP-13	260	2030	2540 x 13	200	415	215	300	22	5	42	20
AHP-14	325	2540	3125 x 13	200	415	215	300	20	4	40	25

Product Details:

Certification	CE Certified,ISO 9001:2008
Weight	100-1000kg,2000-3000kg
Power	110V,220V,440V
Machine Type	Press Brake
Pressing Force (Tonnage)	40–1000 Tons
Bending Length	1250 – 8000 Mm
Material	Mild Steel
Ram Speed	50 – 200 Mm/s
Automation Grade	Manual, Fully Automatic
Angle Range	0° To 135°°
Number Of Axes	3-Axis (X, Y, R)
Hydraulic Oil Capacity	150 – 1000 Liters
Die System	Multi-V Or Custom Dies
Surface Finish	Polished
Max Sheet Thickness	6 - 30 Mm
Cooling System	Oil Cooler Or Fan Cooled
Dimensions (L×W×H)	Approx 4m × 2m × 2m
Foot Pedal Control	Yes
Programming Interface	Touchscreen With Graphical UI
Condition	New
Manufacture By	Rudraksh Engineering
Country Of Origin	India

Get a Quote

Frequently Asked Questions (FAQ)

What is a Hydraulic Press Brake Machine?

A Hydraulic Press Brake is a precision sheet bending machine that uses hydraulic pressure to bend metal sheets into required shapes with superior accuracy and control.
What are the key advantages of using a hydraulic system?

The hydraulic mechanism allows full control over bending force, stroke length, and pressure, ensuring high accuracy, smooth operation, and safety compared to traditional mechanical systems.
What materials can be formed using this machine?

It is ideal for mild steel, stainless steel, aluminum, and other ductile materials, commonly used in fabrication, construction, and automotive industries.
What makes Rudraksh Engineering’s Hydraulic Press Brake stand out?

It features sturdy frame construction, synchronized hydraulic cylinders, advanced back gauge systems, and precision-ground tooling, ensuring long service life and repeatable accuracy.
What are the different control configurations available?

The machine can be configured as manual, NC, or CNC-controlled, depending on operational requirements and the level of automation desired.
How does synchronization help in the bending process?

Hydraulic synchronization ensures uniform ram movement on both sides, preventing angle variations and improving the consistency of bends across the workpiece.
What safety features are included?

The Hydraulic Press Brake includes overload protection, pressure limiters, emergency shut-off controls, and light curtain systems, ensuring complete operational safety.
Does Rudraksh Engineering provide installation and training?

Yes, the company offers on-site installation, machine calibration, operator training, and after-sales technical support to ensure smooth and efficient operation.
